TE-1033S
Mini Tower case with 250 W power supply · Micro-ATX / Mini-ITX
Mini Tower case with a 250 W power supply included, for Micro-ATX and Mini-ITX boards. ABS front panel, metal chassis and audio and USB ports at the front.
- Mini Tower form factor, compatible with Micro-ATX and Mini-ITX boards.

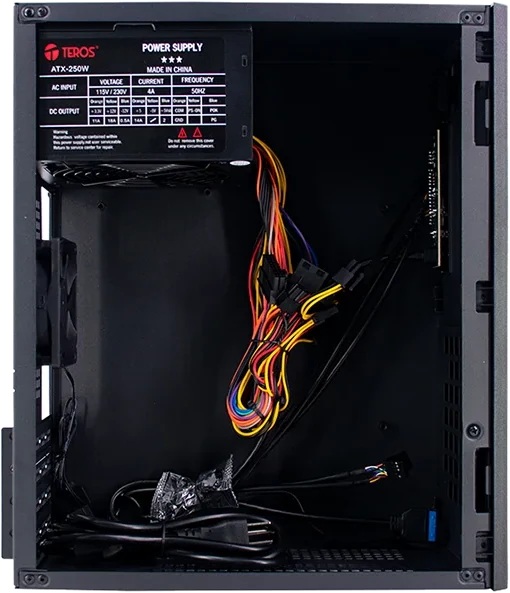

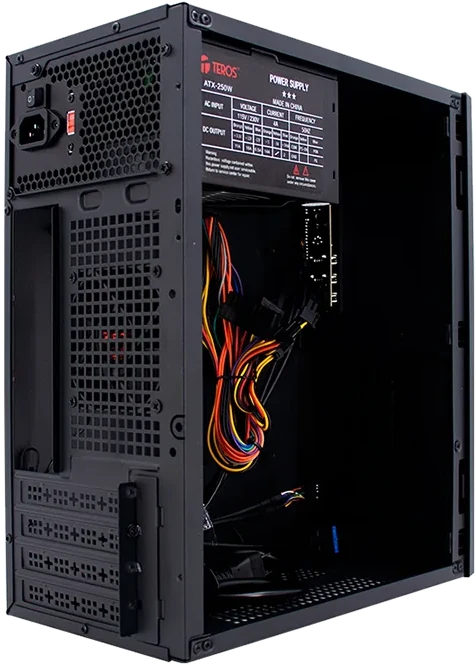

- Includes a 250 W ATX power supply, mounted in the top position.
- Chassis in 0.7-0.8 mm SPCC steel, with metal side and top panels.
- Takes a graphics card up to 18 cm and a CPU cooler up to 11 cm tall.

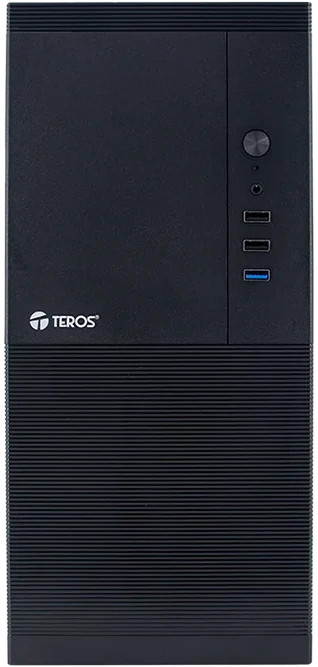

- Front ports for audio, microphone, USB 2.0 and USB 3.0.
The two PDFs above do not exist on the server yet: place them in
descargas/ with those exact names.
| General | |
|---|---|
| Device | Case |
| Case type | Standard |
| Brand | TEROS |
| Model | TE-1033S |
| Manufacturer code | TE-1033S |
| Color | Black |
| Form factor | |
| Form factor | Mini Tower |
| Supported motherboards | Micro-ATX / Mini-ITX |
| Orientation | Vertical |
| Materials | |
| Chassis | SPCC steel 0.7 / 0.8 mm |
| Front panel | ABS |
| Left side panel | Metal |
| Right side panel | Metal |
| Top panel | Metal |
| Dimensions and weight | |
| Complete case | 30.00 × 16.50 × 34.50 cm |
| Packaging | 37.20 × 18.20 × 31.00 cm |
| Net weight | 3.5 kg |
| Gross weight | 4.0 kg |
| Power supply | |
| Power supply included | Yes |
| Power supply form factor | ATX |
| Power supply position | Top |
| Power output | 250 W |
| Input voltage | 115 VAC / 230 VAC |
| Power supply connectors | 1 × 24-pin ATX main, 1 × 4-pin ATX 12V, 2 × SATA power, 2 × peripheral (4-pin) |
| Bays and expansion | |
| Internal 3.5" bays | 2 |
| Internal 2.5" bays | 2 |
| Expansion slots | 4 |
| Maximum CPU cooler height | 11.00 cm |
| Maximum graphics card length | 18.00 cm |
| Maximum power supply length | 14.00 cm |
| Ports and controls | |
| Buttons | Power, reset |
| LEDs | Power, HDD |
| Audio | 1 |
| Microphone | 1 |
| USB 2.0 Type-A | 1 |
| USB 3.0 Type-A | 1 |
| Cooling | |
| Preinstalled at the rear | 1 × 80 mm |
Warranty and certifications
Factory backing
Official 3-year warranty, handled by the authorized distributor in your country. The claim process and the support channels are on the support page.
From the factory
ISO 9001BSCI
For this product
CEFCCRoHS
How to buy
- Choose your country on the distributors page.
- Write to the distributor with the model TE-1033S and the quantity you need.
- The distributor quotes, invoices and delivers; the warranty is registered in your name.
