Cases
TE-1034S
Mini Tower case with 250 W power supply · Micro-ATX / Mini-ITX
Compact Mini Tower case in black with a 250 W ATX power supply included. Compatible with Micro-ATX and Mini-ITX boards, with two 3.5" bays, two 2.5" bays and 4 expansion slots. Front USB 3.0, USB 2.0 and audio ports, and an 80 mm rear fan.
- Mini Tower form factor, compatible with Micro-ATX and Mini-ITX boards.
- Includes a 250 W ATX power supply in the top position, with 115/230 VAC input.
- Chassis in 0.7–0.8 mm SPCC steel, with an ABS front panel and metal sides.
- Takes CPU coolers up to 16 cm tall and graphics cards up to 26 cm long.

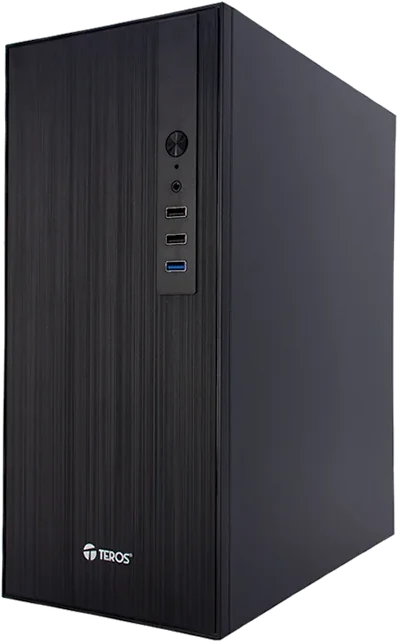

- Front ports: audio, 2 × USB 2.0 and 1 × USB 3.0, with power and reset buttons.
The two PDFs above do not exist on the server yet: place them in
descargas/ with those exact names.
| General | |
|---|---|
| Device | Case |
| Case type | Standard |
| Brand | TEROS |
| Model | TE-1034S |
| Manufacturer code | TE-1034S |
| Color | Black |
| Form factor | |
| Form factor | Mini Tower |
| Supported motherboards | Micro-ATX / Mini-ITX |
| Orientation | Vertical |
| Materials | |
| Chassis | SPCC steel 0.7 / 0.8 mm |
| Front panel | ABS plastic |
| Left side panel | Metal |
| Right side panel | Metal |
| Top panel | Metal |
| Dimensions and weight | |
| Complete case (height × width × depth) | 38.20 × 16.00 × 29.30 cm |
| Chassis (height × width × depth) | 35.00 × 16.00 × 28.40 cm |
| Package (height × width × depth) | 37.20 × 18.20 × 31.00 cm |
| Net weight | 3.5 kg |
| Gross weight | 4.0 kg |
| Power supply | |
| Power supply included | Yes |
| Power supply form factor | ATX |
| Power supply position | Top |
| Power output | 250 W |
| Input voltage | 115 VAC / 230 VAC |
| Power supply connectors | 1 × 24-pin ATX main, 1 × 4-pin ATX 12V, 2 × SATA power, 2 × peripheral (4-pin) |
| Bays and expansion | |
| Internal 3.5" bays | 2 |
| Internal 2.5" bays | 2 |
| Expansion slots | 4 |
| Maximum CPU cooler height | 16.00 cm |
| Maximum graphics card length | 26.00 cm |
| Ports and controls | |
| Buttons | Power, reset |
| Audio | 1 |
| USB 2.0 Type-A | 2 |
| USB 3.0 Type-A | 1 |
| Cooling | |
| Preinstalled | 1 × 80 mm (rear) |
Warranty and certifications
Factory backing
Official 3-year warranty, handled by the authorized distributor in your country. The claim process and the support channels are on the support page.
From the factory
ISO 9001BSCI
For this product
CEFCCRoHS
How to buy
- Choose your country on the distributors page.
- Write to the distributor with the model TE-1034S and the quantity you need.
- The distributor quotes, invoices and delivers; the warranty is registered in your name.
