Cases
TE-1032S

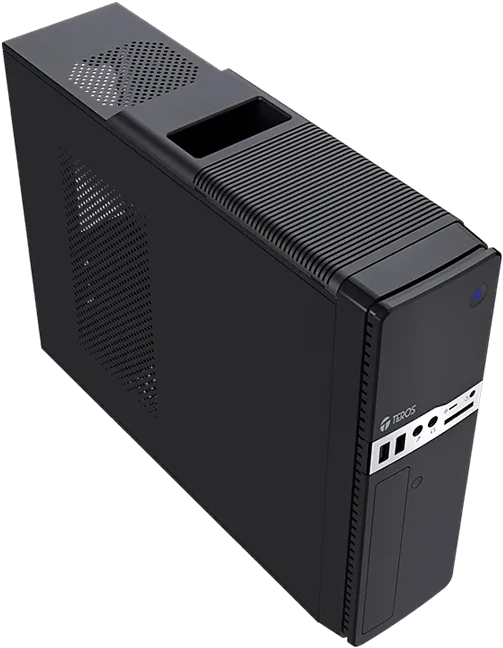

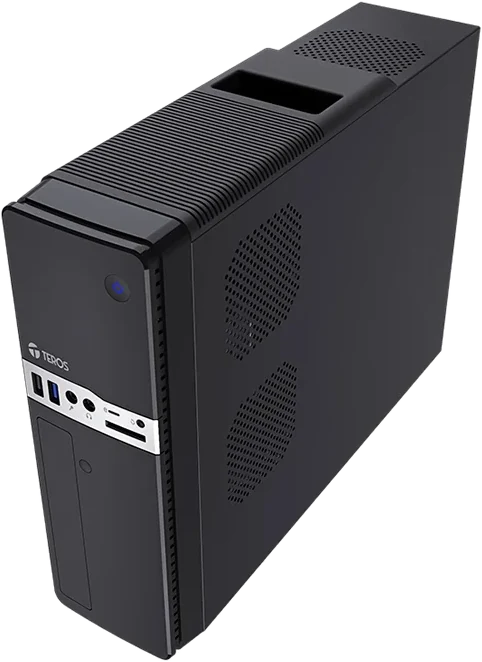

Slim case with 250 W power supply · Micro-ATX / Mini-ITX
Low-profile case (Slim/SFF) with a 250 W power supply included. Designed for compact office or home systems, with vertical or horizontal orientation and a built-in carrying handle.
- Slim (SFF) form factor, compatible with Micro-ATX and Mini-ITX boards.
- Includes a 250 W SFX power supply, with 24-pin and 8-pin connectors.
- Chassis in 0.5 mm SPCC/SGCC steel, with an ABS plastic front panel.
- Vertical or horizontal orientation, with a stand included and a carrying handle.

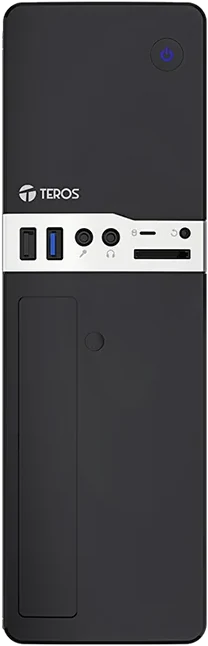

- Front ports: audio, USB 2.0 and USB 3.0, plus a card reader.
The two PDFs above do not exist on the server yet: place them in
descargas/ with those exact names.
| General | |
|---|---|
| Device | Case |
| Case type | Standard |
| Brand | TEROS |
| Model | TE-1032S |
| Manufacturer code | TE-1032S |
| Color | Black |
| Form factor | |
| Form factor | Slim (SFF) |
| Supported motherboards | Micro-ATX / Mini-ITX |
| Orientation | Vertical or horizontal (stand included) |
| Materials | |
| Chassis | SPCC / SGCC steel 0.5 mm |
| Front panel | ABS plastic |
| Left side panel | Metal |
| Right side panel | Metal |
| Top panel | Plastic carrying handle |
| Dimensions and weight | |
| Complete case | 30.60 × 10.00 × 40.45 cm |
| Chassis | 29.50 × 10.00 × 36.50 cm |
| Packaging | 34.90 × 15.50 × 44.90 cm |
| Net weight | 3.10 kg |
| Gross weight | 3.70 kg |
| Power supply | |
| Power supply included | Yes |
| Power supply form factor | SFX |
| Power output | 250 W |
| Power supply connectors | 1 × 24-pin, 1 × 8-pin, 2 × SATA power, 1 × peripheral (4-pin) |
| Bays and expansion | |
| Internal 3.5" bays | 2 |
| Internal 2.5" bays | 2 |
| External 5.25" bays | 1 |
| Expansion slots | 4 |
| Maximum CPU cooler height | 7.80 cm |
| Ports and controls | |
| Buttons | Power |
| Audio | 1 |
| USB 2.0 Type-A | 1 |
| USB 3.0 / 3.1 Type-A | 1 |
| Card reader | 1 |
| Cooling | |
| Top mount | 1 × 80 mm |
| Additional features | |
| Security and transport | Kensington slot, vertical stand, padlock loop, carrying handle |
Warranty and certifications
Factory backing
Official 3-year warranty, handled by the authorized distributor in your country. The claim process and the support channels are on the support page.
From the factory
ISO 9001BSCI
For this product
CEFCCRoHS
How to buy
- Choose your country on the distributors page.
- Write to the distributor with the model TE-1032S and the quantity you need.
- The distributor quotes, invoices and delivers; the warranty is registered in your name.
