TE-8614W
86" UHD interactive display · Android 14 EDLA · 40-point touch

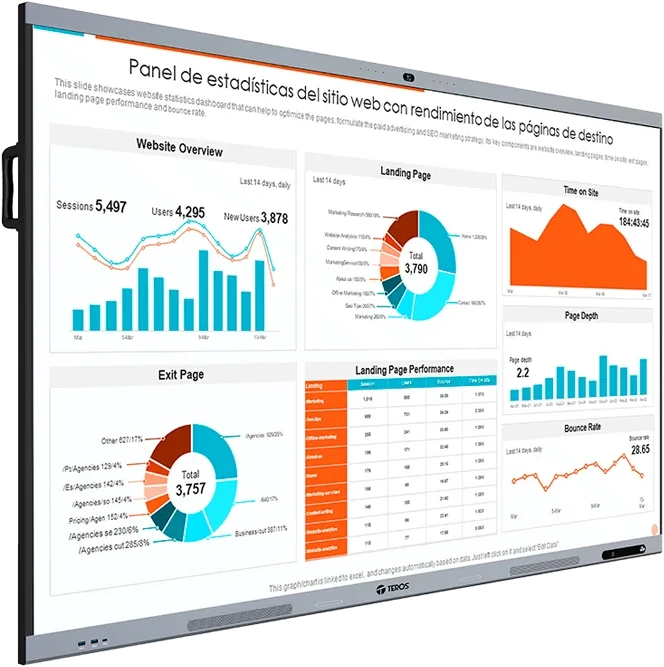

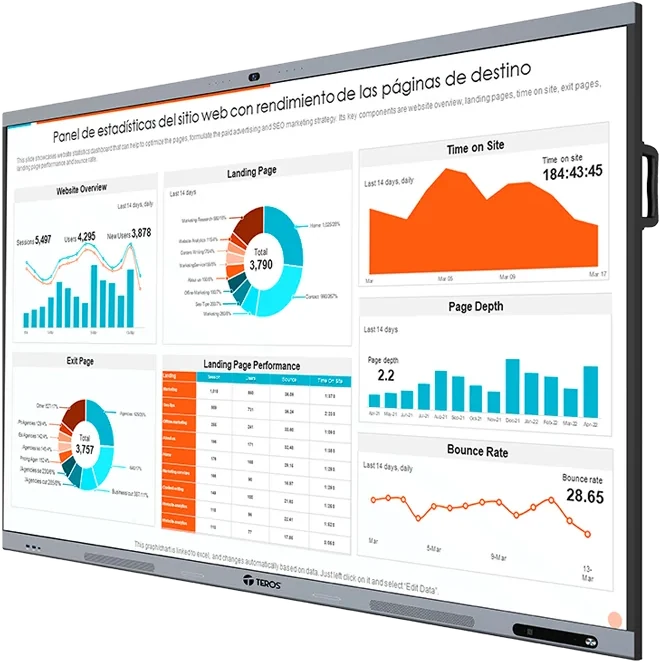

86-inch interactive display with 4K UHD resolution, infrared touch with up to 40 points and Android 14 with EDLA certification. Writing on tempered glass, a 178° viewing angle, a built-in 48 MP camera, 8 microphones and dual LAN ports. Compatible with OPS modules.
- Infrared touch with up to 40 simultaneous points, with a response of 8 ms or less.
- Android 14 with EDLA certification, an eight-core processor, 8 GB of RAM and 128 GB of internal storage.
- Built-in 48 MP camera with a 114.9° diagonal field of view and an 8-microphone array.
- Built-in 2 × 20 W audio, with no need for an external soundbar.
- OPS slot with an 18 V / 5 A output: it takes a Windows computer module with no external cables.
- Full connectivity: 2 × HDMI IN 2.1, HDMI OUT, DisplayPort 1.2a, 2 × USB-C, USB 3.0, RS-232 and optical SPDIF.
The two PDFs above do not exist on the server yet: place them in
descargas/ with those exact names.
| General | |
|---|---|
| Device | Interactive display |
| Brand | TEROS |
| Model | TE-8614W |
| Manufacturer code | TE8614W |
| Display | |
| Screen size | 86 inches |
| Maximum resolution | 3840 × 2160 (4K UHD) |
| Aspect ratio | 16:9 |
| Visible area (H × V) | 189.50 × 106.60 cm |
| Pixel pitch (H × V) | 0.4935 × 0.4935 mm |
| Touch | Yes, infrared |
| Touch points | Up to 40 |
| Touch response time | ≤ 8 ms |
| Optical features | |
| Backlight | D-LED |
| Contrast | 1200:1 (typical) · 3000:1 (dynamic) |
| Brightness | 450 nits |
| NTSC | 72% |
| Color depth | 1.07 billion colors |
| Viewing angle | 178° (H) / 178° (V) |
| Response time | 8 ms |
| Refresh rate | 60 Hz |
| Service life | 50,000 hours |
| Operating system and processing | |
| Operating system | Android 14 (EDLA) |
| CPU | Quad core ARM Cortex-A72 + quad core ARM Cortex-A53 (max. 2.2 GHz) |
| GPU | ARM Mali-G52 MC3 |
| RAM | 8 GB |
| Internal storage | 128 GB |
| Audio and camera | |
| Built-in speakers | Yes |
| Speaker power | 2 × 20 W |
| Microphones | 8 |
| Built-in camera | Yes, 48 MP, 114.9° diagonal FOV |
| Connectivity | |
| Wi-Fi | 2.4 GHz / 5 GHz, 802.11 a/b/g/n/ac (Wi-Fi 5) |
| HDMI | 2 × HDMI IN 2.1 · 1 × HDMI OUT 2.1 |
| DisplayPort | 1 × DP IN 1.2a |
| USB-C | 1 front · 1 rear |
| USB 3.0 | 2 front · 1 rear |
| USB Touch (3.0) | 2 |
| USB 2.0 Type-A | 1 |
| Microphone input | 1 |
| Audio output | 1 (3.5 mm) |
| SPDIF | 1 (optical) |
| RS-232 | 1 (DB9) |
| Power | |
| Power type | Internal power supply |
| Input voltage | 100–240 VAC / 50–60 Hz (5.0 A) |
| OPS output voltage | DC 18 V / 5 A |
| Typical power draw | 460 W |
| Standby power draw | 0.5 W |
| Mechanics and dimensions | |
| Wall mount (VESA) | Yes, 800 × 600 mm |
| Dimensions without stand | 195.04 × 8.69 × 117.40 cm |
| Operating conditions | |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 20% – 80% RH (non-condensing) |
| Storage temperature | −10 °C to 60 °C |
| Storage humidity | 10% – 80% RH (non-condensing) |
| Compatibility and box contents | |
| Multitouch compatibility | Windows 11/10/8/7 and Android (single point on XP, Linux, macOS and ChromeOS) |
| In the box | Interactive display, remote control, 2 styluses, 3 m power cable, 3 m USB A-B cable, 3 m HDMI cable, wall mount, certificate, warranty card and digital manual |
Warranty and certifications
Factory backing
Official 3-year warranty, handled by the authorized distributor in your country. The claim process and the support channels are on the support page.
From the factory
ISO 9001BSCI
For this product
CEFCCRoHS
