TE-1330G
Mid Tower gaming case without power supply · E-ATX with vertical GPU mount

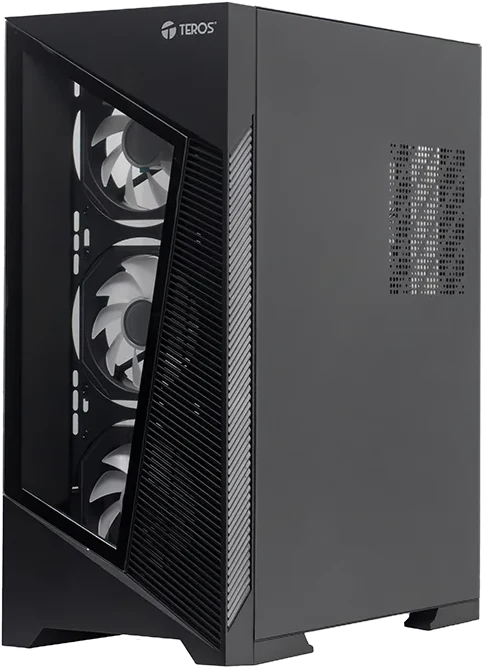

Black Mid Tower with a tempered glass panel and four 120 mm ARGB fans included. It supports boards up to E-ATX, 360 mm front radiators and vertical graphics card mounting (7 + 2 slots). Room for two 3.5" drives and four 2.5" drives. The power supply is not included.
- It supports E-ATX, ATX, Micro-ATX and ITX boards, the widest format in the gaming line.
- 7 + 2 expansion slots: the 2 extra ones allow the graphics card to be mounted vertically.
- Four 120 mm ARGB fans included, with support for up to 7 in total.
- Radiators up to 360 mm at the front and 280 mm on top; right panel in tempered glass.
- Storage for two 3.5" drives and four 2.5" drives, with a double dust filter.
The two PDFs above do not exist on the server yet: place them in
descargas/ with those exact names.
| General | |
|---|---|
| Device | Case |
| Case type | Gaming |
| Brand | TEROS |
| Model | TE-1330G |
| Manufacturer code | TE-1330G |
| Color | Black |
| Form factor | |
| Form factor | Mid Tower |
| Supported motherboards | E-ATX / ATX / Micro-ATX / ITX |
| Orientation | Vertical |
| Materials | |
| Chassis | SPCC steel 0.4 / 0.5 mm |
| Front panel | ABS plastic |
| Left side panel | Metal |
| Right side panel | Tempered glass |
| Top panel | Metal |
| Dimensions and weight | |
| Complete case (height × width × depth) | 48.00 × 21.00 × 39.40 cm |
| Chassis (height × width × depth) | 47.50 × 21.00 × 35.00 cm |
| Package (height × width × depth) | 52.40 × 24.00 × 50.20 cm |
| Net weight | To be confirmed |
| Gross weight | To be confirmed |
| Power supply | |
| Power supply included | No |
| Power supply form factor | ATX |
| Power supply position | Bottom, with PSU shroud |
| Maximum power supply length | 26.50 cm |
| Bays and expansion | |
| Internal 3.5" bays | 2 |
| Internal 2.5" bays | 4 |
| Expansion slots | 7 + 2 (vertical GPU mount) |
| Maximum CPU cooler height | 16.00 cm |
| Maximum graphics card length | 33.00 cm |
| Ports and controls | |
| Buttons | Power, reset |
| Audio | 1 |
| USB 2.0 Type-A | 2 |
| USB 3.0 Type-A | 1 |
| Cooling | |
| Preinstalled at the front | 3 × 120 mm |
| Preinstalled at the rear | 1 × 120 mm |
| ARGB fans included | Yes (4 × 120 mm) |
| Front mount | 3 × 120 mm or 3 × 140 mm |
| Top mount | 2 × 120 mm or 2 × 140 mm |
| Rear mount | 1 × 120 mm |
| Mount on the PSU shroud | 1 × 120 mm |
| Liquid cooling | |
| Front radiator | 360 / 280 mm |
| Top radiator | 240 / 280 mm |
| Rear radiator | 120 mm |
| Glass and filters | |
| Tempered glass | Right panel |
| Dust filters | 1 top + 1 bottom |
Warranty and certifications
Factory backing
Official 3-year warranty, handled by the authorized distributor in your country. The claim process and the support channels are on the support page.
From the factory
ISO 9001BSCI
For this product
CEFCCRoHS
How to buy
- Choose your country on the distributors page.
- Write to the distributor with the model TE-1330G and the quantity you need.
- The distributor quotes, invoices and delivers; the warranty is registered in your name.
